65kW diesel version light truck range extender system
Diesel version light truck range extender system
Low speed and high efficiency
While adopting the QUANCHAI Q23 diesel engine, ZONHOW's 65 kW low-speed high-efficiency range extender generator and Bosch integrated system control logic are used to achieve 3.9 kWh / L oil-electricity conversion efficiency, leading the industry 's same

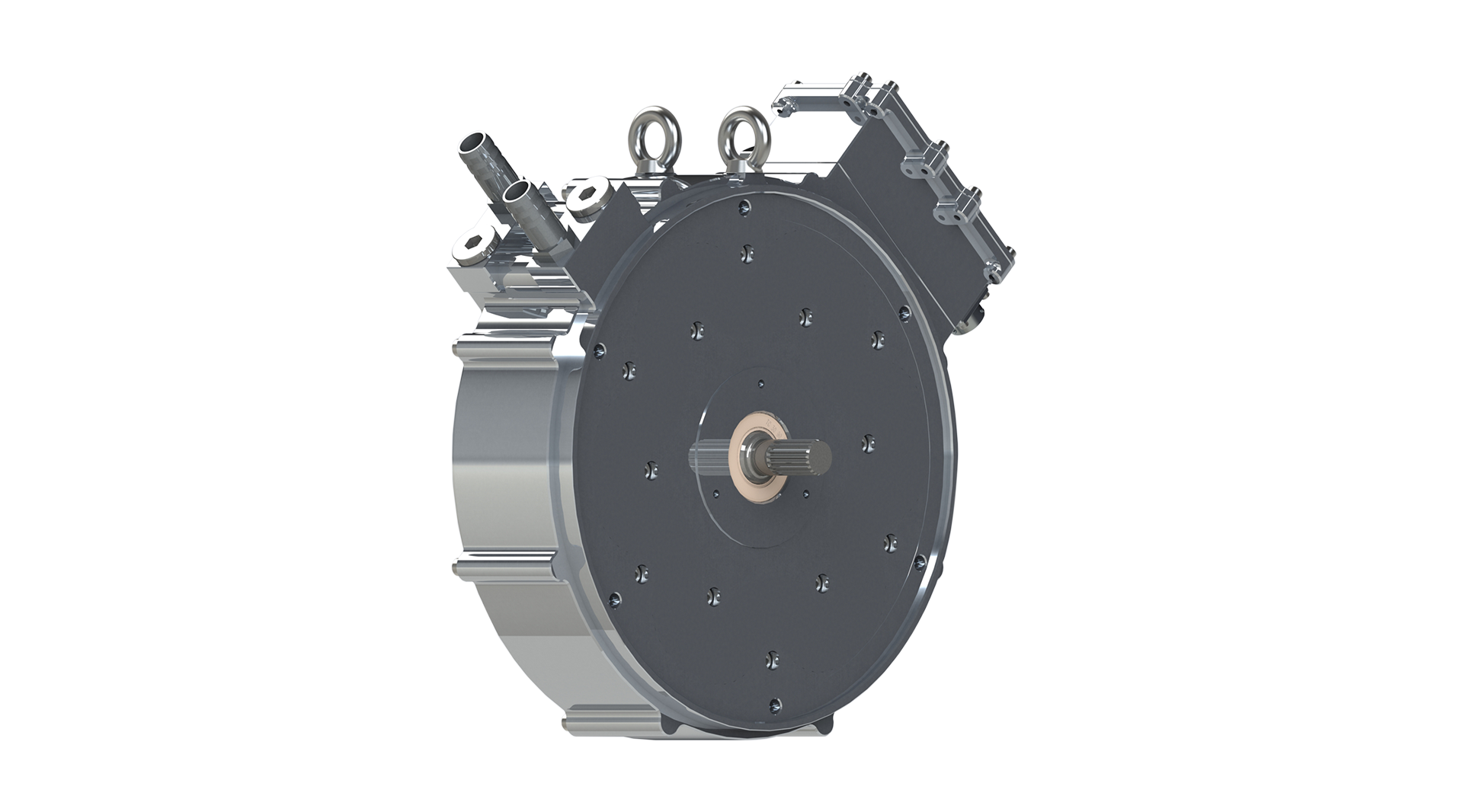

65kW single motor
Common model | TZ240XSZH06680 | TZ245XSZH180340 | TZ295XSZH650340 | TZ410XSZH1500650 |
Cell voltage/VDC | 80 | 340 | 340 | 650 |
Rated power/kW | 6.6 | 18 | 65 | 150 |
Peak power/Kw | 12 | 30 | 120 | 250 |
Rated torque/Nm | 20 | 65 | 310 | 720 |
Peak torque/Nm | 40 | 130 | 400 | 1200 |
Rated speed/rpm | 3200 | 2650 | 2000 | 2000 |
Peak speed/rpm | 4000 | 5000 | 3000 | 3000 |
Paek efficiency | 93% | 94% | 95% | 96% |
Dimension/mm | Φ300*75 | Φ314*82.5 | Φ370*150 | Φ500*200 |
Type of cooling | Water-cooling | Water-cooling | Water-cooling | Water-cooling |
Flow rate/L/min | 12 | 16 | 20 | 30 |
