Gasoline version light truck range extender system
Gasoline version range extender system
Efficient and energy-saving

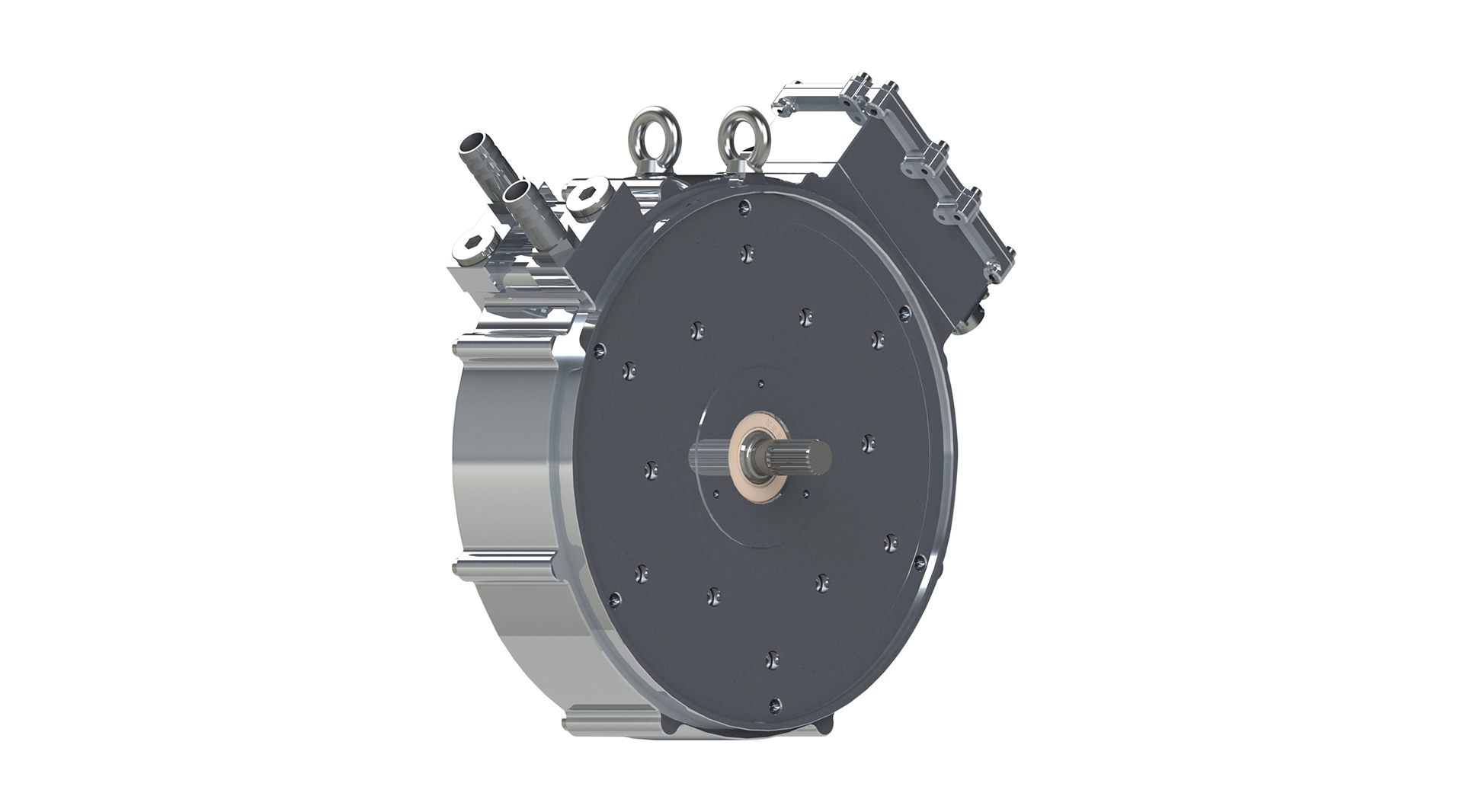

It adopts the Xiaokang SFG15R engine and ZONHOW 45kW axial flux permanent magnet generator, and uses the range-extending control algorithm developed by the main engine plant. The power generation efficiency exceeds 3.2kWh/L, higher than the industry level, with high efficiency and energy saving.
55kW single motor
Common model | TZ230XSZH300350 | TZ245XSZH450340 | TZ275XSZH600540 | TZ275XSZH730340 |
Cell voltage/VDC | 350 | 340 | 540 | 340 |
Rated power/kW | 35 | 45 | 60 | 73 |
Peak powerKw | 50 | 80 | 110 | 100 |
Rated torque/Nm | 110 | 122 | 165 | 200 |
Peak torque/Nm | 150 | 240 | 300 | 300 |
Rated speed/rpm | 3000 | 3500 | 3500 | 3500 |
Peak speed/rpm | 4500 | 5500 | 5000 | 5000 |
Peak efficiency | 95% | 95% | 96% | 96% |
Dimension/mm | Φ300*130 | Φ314*130 | Φ344*130 | Φ344*140 |
Type of cooling | Water-cooling | Water-cooling | Water-cooling | Water-cooling |
Flow rate/L/min | 16 | 16 | 16 | 16 |
